GEDA-Dechentreiter GmbH & Co. KG manufactures industrial and construction site elevators – Made in Germany. The new GEDA BL 2000 personnel and goods lift is designed to carry a maximum of two tonnes, and the cage offers sufficient space to transport EURO pallets or groups of workers up to heights of up to 250 metres.
The essential feature of the drive system is that it achieves all this with optimum speed and high travelling comfort, completely independently of load. The new KEB COMBIVERT F6-A (“Application” version) is designed as a universal drive controller for all types of motors, and operates the parallel three-phase drive with precise motor and positional control also via load-dependent speed control. The operator selects the destination using the convenient display screen of the KEB HMI touch panel.

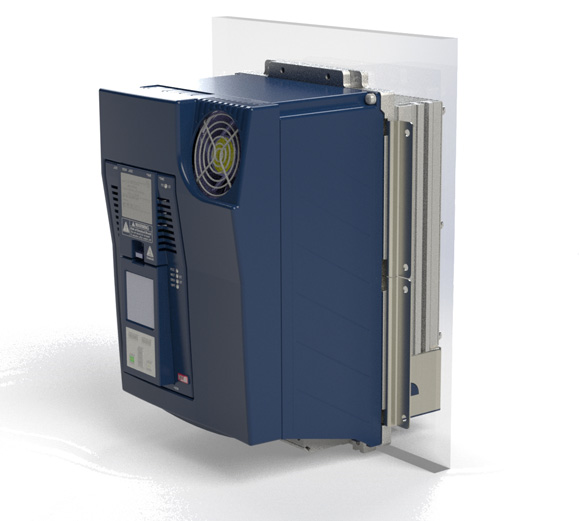

The core of the GEDA BL 2000 is the rectangular S-mast on which the complete electrical installation is mounted. Drive is provided by two motors and the KEB COMBIVERT F6-A drive controller. The device is installed in a particularly compact push-fit version (IP54), is controlled via Profinet and equipped as standard with the safety functions STO (safe torque off) and SBC (safe brake control).
